Various Dimension Carbide Strip and Plates for Cutter and Inserts
Tungsten Carbide Plates Features:
1. Use 100% tungsten carbide raw material
2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Blanks, high machining accuracy / precision
6. OEM customized sizes available
7. Factory’s offer
8. Strict products quality inspection
9. With API certificate, ISO9001:2015
Recommended tungsten carbide grade list
| Grade | Co/Ni
(Wt %) | Density
(g/cm3)
ISO 3369 | Hardness (HRA)
ISO 3738:1 | TRS
(≥N/mm²)
ISO 3327 | Grain Size (μm)
ISO 4499:2 |
| ZY04X | 3.5-4.5 | 15.00-15.20 | 92.8-93.8 | ≥2500 | 0.8-1.0 |
| ZY05X | 4.5-5.5 | 14.80-15.05 | ≥93.5 | ≥2800 | ≤0.8 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 92.5-93.8 | ≥3000 | ≤0.8 |
| ZY06-G | 5.5-6.5 | 14.89-15.05 | 91.3-92.3 | ≥3000 | 0.8-1.0 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | 90.0-91.5 | ≥3000 | 1.2-1.6 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | ≥3000 | ≤0.8 |
| ZY12 | 11.0-12.5 | 14.15-14.45 | 88.5-90.0 | ≥3000 | 0.8-1.2 |
| ZY15X | 15.0-16.0 | 13.85-14.15 | ≥89.0 | ≥3000 | ≤0.8 |
| ZY20 | 18.0-19.0 | 13.55-13.75 | ≥83.8 | ≥2800 | 1.2-1.6 |
| ZY25 | 24.0-26.0 | 12.95-13.15 | ≥81.5 | ≥2800 | 3.0-5.0 |
| Ni06X | 5.5-6.5 | 14.85-15.05 | 92.0-93.5 | ≥2800 | ≤0.8 |
| Ni10-H | 10.0-11.0 | 14.40-14.70 | 89-90.5 | ≥2800 | 0.8-1.2 |
| Ni15-G | 14.3-15.3 | 13.90-14.10 | ≥82.0 | ≥2800 | 3.2-4.0 |
Seed Technologies Corp., LTD., located in Zhuzhou (China), is a high-tech developer, manufacturer, and distributor of superior wear resistant parts, tool assembly and equipment for Oil and gas, Areospace, Valve and Pumps industry.
Aseeder Corporation was invested by Seed as a Houston based company dedicated for sales and customer support in north America market.
The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact.Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.
Product Tags:
|
|

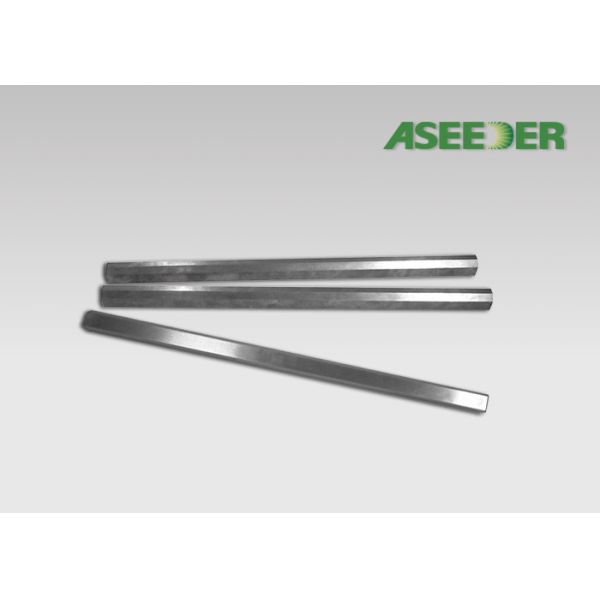

ZY25 Carbide Plates & Strips 81.5HRA For Cutter Images
|
